08-26-2008, 07:22 PM
#1
The Dirty Pearl
Join Date: Jul 2005
Location: Pasadena, MD
Posts: 6,475

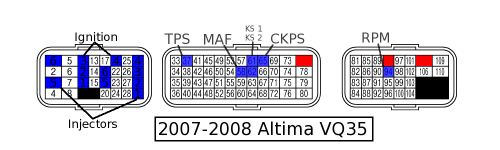

ECU Pinout cheat-sheets (large images, 1000+px wide)
Some ECU pinout cheat sheets, if anyone's interested. All images are linked to the full-size versions.
I keep a few of these around (the A32 and Z33, both DE and HR) laminated in my box for doing EMS installs and the like. They're very useful laminated, as you can make notes and mark off spots with sharpie, then just spray it down with brake parts cleaner and comes out looking like new.
The '95 and '96-98 could easily be combined into one, but I haven't really cared to look into why one has two pins for the CKPS POS and the other just one. Didn't even bother with the '99, since I only have the FSM and no concrete pinout details.
If anyone has a pinout for the VG and VE J30s, I'll make up one for those as well.
Red is power, black is ground...
Last edited by pmohr; 08-26-2008 at 07:37 PM .
08-26-2008, 07:25 PM
#2
The Dirty Pearl
Join Date: Jul 2005
Location: Pasadena, MD
Posts: 6,475
Of course, the DE Z33 pinout is the same as the '04-'07 Maxima, so I won't bother posting that twice. I do have the XCF and PNG of it though, in case anyone wants it.
Last edited by pmohr; 08-26-2008 at 07:35 PM .
08-26-2008, 09:48 PM
#3
Supporting Maxima.org Member
Join Date: May 2005
Location: Chicago, IL
Posts: 3,102
Very nice! Thanks! Should be linked to the stickies, definately.
08-27-2008, 08:27 AM
#4
Merc signs my checks
Join Date: Jul 2003
Posts: 6,838
very nice thread
08-27-2008, 08:41 AM
#5
Use the Search Function!!
Join Date: Mar 2001
Location: Seattle Area, WA
Posts: 6,495
Very nice. Stuck for usefulness!
__________________
98 SE - Supercharged at 10psi w/the works - VQ35 coming soon...
2k SE - Stock... pretty much
88 RX-7 - Sold
95 240sx KA-T 10psi - sold
3 4th gens.... gone....
08-27-2008, 09:22 AM
#6
Play with my balls
Join Date: Sep 2002
Location: Charlotte, NC
Posts: 4,637
SO-a-B this is exactly what I need. Thanks mang!
08-27-2008, 06:50 PM
#7
The Dirty Pearl
Join Date: Jul 2005
Location: Pasadena, MD
Posts: 6,475
Quote:
Originally Posted by
mtrai760
Very nice. Stuck for usefulness!
FTR, 05-06 Altima is the same as A34 and Z33, and 02-04 Altima is the same as A33B.
08-27-2008, 09:17 PM
#8
Senior Member
Join Date: Sep 2003
Location: El Paso, TX
Posts: 324
Do you have it for a 99max?
__________________
99 Maxima SE Limited 5SPD
08-27-2008, 09:33 PM
#9
The Dirty Pearl
Join Date: Jul 2005
Location: Pasadena, MD
Posts: 6,475
Quote:
Originally Posted by
tlrmax
Do you have it for a 99max?
No, since the ECU pinout in the FSM is incorrect, unless someone cares to give me a link to a known correct pinout.
08-27-2008, 09:36 PM
#10
Senior Member
Join Date: Sep 2003
Location: El Paso, TX
Posts: 324
oh ok. I am gathering all my info b4 I install my mevi. I was wanting to know which is the rpm ecu pin for my 99.
__________________
99 Maxima SE Limited 5SPD
08-27-2008, 09:38 PM
#11
The Dirty Pearl
Join Date: Jul 2005
Location: Pasadena, MD
Posts: 6,475
Quote:
Originally Posted by
tlrmax
oh ok. I am gathering all my info b4 I install my mevi. I was wanting to know which is the rpm ecu pin for my 99.
Should be pin 5, like the rest of the A32s. W/G, IIRC.
08-27-2008, 09:39 PM
#12
Senior Member
Join Date: Sep 2003
Location: El Paso, TX
Posts: 324
Quote:
Originally Posted by
pmohr
Should be pin 5, like the rest of the A32s. W/G, IIRC.
Thats what I figured but my 99 shares many things with the 2000. Thats why I was curious.
__________________
99 Maxima SE Limited 5SPD
08-27-2008, 09:44 PM
#13
The Dirty Pearl
Join Date: Jul 2005
Location: Pasadena, MD
Posts: 6,475
Quote:
Originally Posted by
tlrmax
Thats what I figured but my 99 shares many things with the 2000. Thats why I was curious.
As long as it has an A32 ECU and matching harness connector, it should be pin 5.
08-27-2008, 10:28 PM
#14
Build.
Join Date: Apr 2003
Location: Miami, FL
Posts: 8,164
Very nice indeed.
__________________
"Men occasionally stumble over the truth, but most of them pick themselves up and hurry off as if nothing ever happened."
09-10-2008, 10:23 PM
#15
Hibernating
Join Date: Jan 2005
Location: Philadelphia
Posts: 1,218
Thankyou.
__________________
Weird things happen when drawings come to life.
Old setup =3.5/ssim/H/Y/C/Arp stuff/Vlsd/3"exhaust/NX (whats in your nozzle?)
217whp 209wtq N/A
13.9@100.27
???whp ???wtq Nitrous
12.9@111.81 Dragradials
http://www.youtube.com/watch?v=9IizQezbiBA
3080 Lbs with driver (notarized proof)10/2008
Around 3000 with driver (present)
09-14-2008, 04:13 AM
#16
Newbie - Just Registered
Join Date: Sep 2008
Posts: 2
hi can u please tell me whether 06 nissan maxima j31 ecu pinout will be same with Z33de.
also where is the ecu located
thankyou
09-14-2008, 02:29 PM
#17
The Dirty Pearl
Join Date: Jul 2005
Location: Pasadena, MD
Posts: 6,475
Quote:
Originally Posted by
cow88
hi can u please tell me whether 06 nissan maxima j31 ecu pinout will be same with Z33de.
also where is the ecu located
thankyou
J31? What country do you live in? USDM 6th gen is A34.
09-17-2008, 09:15 AM
#18
"I choose boobs!"
Join Date: Jul 2006
Location: St. Louis, MO
Posts: 1,017
Quote:
Originally Posted by
pmohr
No, since the ECU pinout in the FSM is incorrect, unless someone cares to give me a link to a known correct pinout.
pmohr, have you tried asking the Wiz about this? I mean he did install teh EU on his 99, so maybe he can help. just a thought...
__________________
1997 A32 5MT SE
Powah=|| 00VI || V-AFCII & LC-1 || UR Ultra Sc ||
|| Cattman headers + catback|| WSP test pipe ||
|| Fidanza flywheel and 4-puck kevlar clutch||
|| Z33 intake tube + K&N||
Handling =|| 17x9 +35 FN01R-Cs || 255/40-17 T1Rs | |
|| GC/Koni|| TMS FBs||
|| All ES Bushings & MM|| Hawk pads ||
Other =|| 20% Tint|| E55 BiXenon|| Red/Clears||
|| GREEN Pathy 6CD|| peeling front bumper
Awaiting Installation - TMS SFCs, 3.5 cams, Konis, 4 cv & 2 rack boots
FOR SALE! http://forums.maxima.org/4th-generat...-cleanout.html
10-28-2008, 11:40 PM
#19
Member
Join Date: Apr 2007
Posts: 39
What's KS?
duhhh... knock sensor... i'm an idiot some times
Last edited by irax; 10-29-2008 at 01:03 AM .
